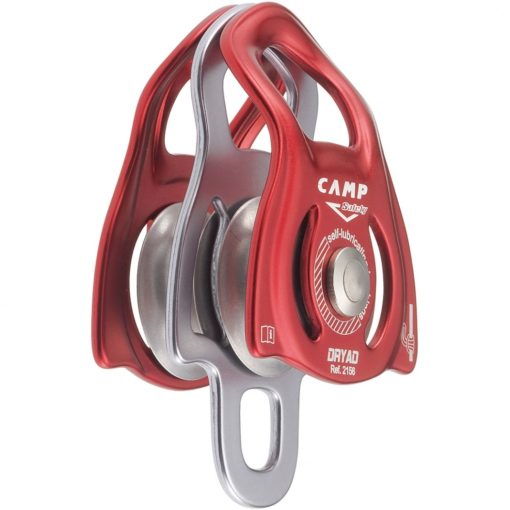

Compact double pulley for block-and-tackle systems. Large connection hole accomodates two carabiners. For ropes up to 13 mm. Prusik minding, the self-locking knot can be installed on both sides and both wheels. Self-lubricated brass bushings are the perfect solution for light applications at low speed. Efficiency: 80%. Aluminum alloy body and wheels, stainless steel axle.
170 g, 6.0 oz
Standard(s): EN 12278 – UIAA – EAC
Inner Sheave Diameter (mm): 28
Max Rope Diameter (mm): 13
Max Breaking Load: 24 kN, 5396 LBF
Working Load Limit: 1 kN x 4 = 4 kN, 225 LBF x 4 = 900 LBF
