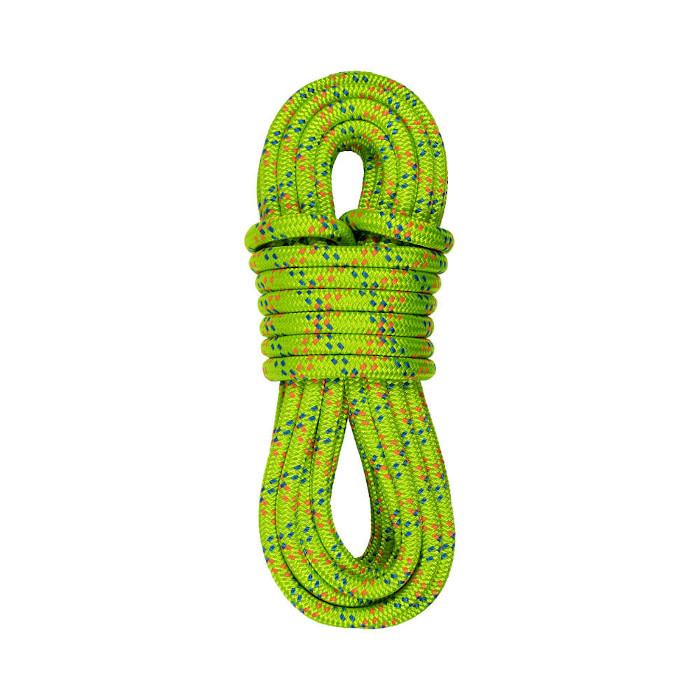

The 3/4″ Atlas is our most durable rigging line, and with an average breaking strength of 22,480 lb, it is built for extreme loads. Like the 1/2”, 9/16” and 5/8” the 3/4” version has a redesigned double-braid construction that provides a huge increase in overall strength. The new core construction has lowered the static elongation but still allows rope to absorb energy/impact force and can limit peak forces when catching wood in negative rigging applications. The tightly woven polyester sheath resists picking, and protects the core without sacrificing handling and flexibility. The 3/4”, along with the other diameters in the Atlas series are ideal for use in a Port-a-Wrap, capstan winch or rigging blocks. The Atlas is spliceable or can be ordered with a sewn eye for knotless rigging.
DIAMETER: 3/4″ (19MM)
WEIGHT PER 100′: 17.3 LBS
ABS RATING: 22,480 LBF. (100KN)
ELONGATION AT 10% MBS: 4.3%
