DMM PINTO PULLEY

$54.95

On Backorder

Price Matching
Ask About Our Price Matching
Free Shipping on Select Rescue Equipment Free Shipping for orders over $99.00

Got Questions?

800-346-7673

Description

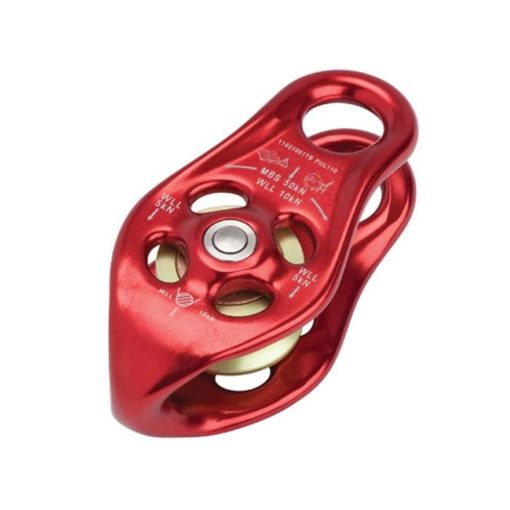

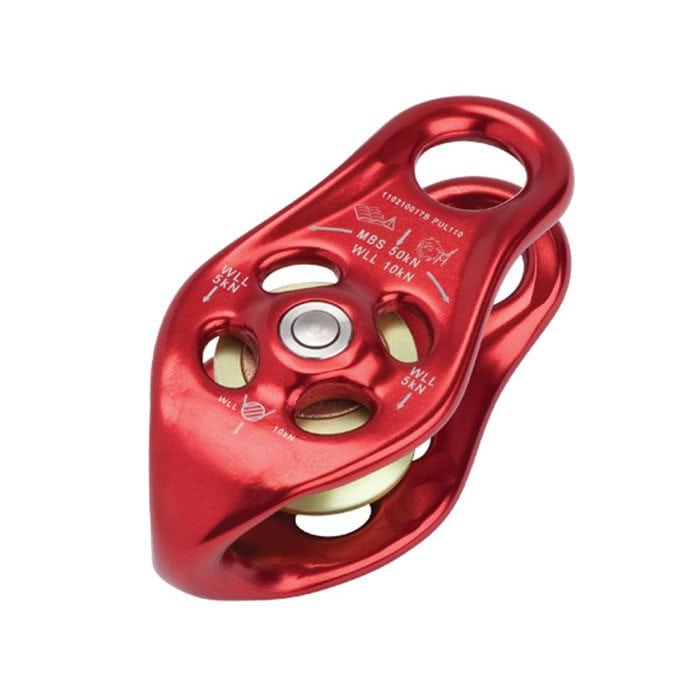

PINTO stands for Pulley I Need To Own. With hardly a straight line in sight, the hot forged curves and fairlead flares of our Pinto Pulley make for an ultra-efficient, ‘textile friendly’ environment. Clip, hitch, splice or thread the anchor holes or the becket to give numerous work and rescue configurations (textile attachments can help minimize any torsional build up in closed systems). An indispensable component of the DMM/Teufelberger CE lanyard system, but equally at home on all other mechanical advantage systems or lifelines. Comes with minimum fuss, highly efficient Oilite bushings. Spacers are available to support the anchor holes when textile connecting elements compress the side plates.

  • Conforms to EN12278:2007 (Pulleys) and NFPA 1983 (2012 Edition) G Rating
  • Hot forged aluminum side plates provide strength and durability
  • Heat treated stainless steel spindles for high strength and corrosion resistance
  • Riveted and tamperproof assembly
  • Pre-lubricated Oilite bushing for smooth operation and minimal maintenance
  • Recommended for arborist, rescue, hauling and many applications where friction reduction is required
  • Anodized to BS EN 7599:2010 AA10 Sealed for corrosion protection
  • Individually marked for traceability

Additional information

Weight .3 lbs
Dimensions 3 × 2 × 2 in
